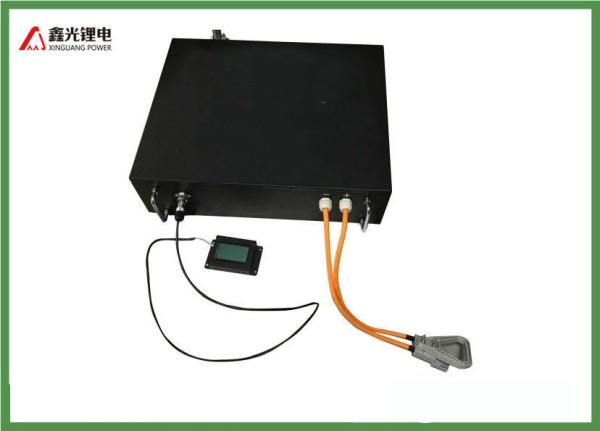

High Quality Smart Rechargeable Lithium Marine Battery 24V200AH ,
with LCD monitor, Warning Alarm
This specification defines the performance of rechargeable LiFePO4
battery pack TB24200F-T110C manufactured by Shenzhen Topband
Battery Co., Ltd, describes the type, performance, technical
characteristics, warning and caution of the battery pack.
SPECIFICATION
| Function Parameter |
| MODEL | HN-LFP 12V 100AHA |
| Norminal Battery Energy | 1260WH |
| Norminal Capacity | 105Ah |
| Norminal Voltage | 12V |
| Internal Resistance | ≤30mΩ |
| Cycle Life | 2000 times (Cycle @RT, 1C rate,100%DOD) |
| Months Self Discharge | <3% |
| Charge Data |
| Charge Voltage | 10.8V-14.6V |
| Charge Mode | 0.2C (0.5A) CC/CV |
| Standard Chargeing Current | 20A |
| Charge Cut-off Voltage | 14.6±0.2V |
| Discharge Data |
| Max continuous discharge current | 50A |
| Instant continuous current | 150A / 3S |
| Discharge Cut-off Voltage | 10.8V |
| Mechanical Data |
| Cell & Method | 4S1P-3.2V 105Ah |
| Shell material | Iron / Plastic |
| Dimensions | H270*W156*L348mm |
| Weight (lbs./kg.) | 11Kgs |
| Working Condition |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
| Enclosure Protection Level | IP65
|
Test Conditions
3.1 Standard Test Conditions
3.1.1 Unless otherwise specified, all performance tests is required
conducted at temperature 25℃±2℃, Humidity less than 45%~75%RH.
3.1.3 Unless otherwise specified, the tested product is required
unused within two month after outgoing.
3.2 Standard Charge Mode
"Standard Charge" means at 25±2℃ charge to limit voltage with 0.33C
constant current, then charge with constant voltage until current
less than 0.02ItA.
3.3 Quick Charge Mode
" Quick Charge" means at 25±2℃ charge to limit voltage with 0.5 C
constant current, then charge with constant voltage until current
less than 0.02ItA.
3.4 Standard Discharge Mode
"Standard Discharge" means at 25±2℃ discharge to the cut-off
voltage with 0.33C current.
3.5 Quick Discharge Mode
"Quick Discharge" means discharge to the cut-off voltage with 0.5C
current.
Product Performance
| NO. | Items | Criteria | Testing method |
| 4.1 | Rated Capacity | 200Ah | Rest for 1 hour after fully charged, then discharge with 0.33C
current until the battery reaches the discharge cutoff voltage.
Repeat above process for three times, if the discharge time is not
less than 120 minutes, you can stop and define the Discharging
current*time value (Ah) as battery capacity. |
| 4.2 | Minimum Capacity | 190Ah |
| 4.3 | Internal resistance | ≤20mΩ | 50% battery SOC state frequency of 1 KHZ ac resistance tester |
| 4.5 | Cycle life (DOD100%) | ≥2000cycle | Discharge with the current of 0.33C until it can’t discharge, and
then rest it for 1h. Charge the battery following
CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h.
Repeat above process until full charged capacity is no more than
80% of normal value. Accumulated times is defined as cycle life. |
| 4.6 | Discharge Temperature Characteristics | -20℃ | ≥70% | At 25±5℃ discharge the battery with the current of 0.33C to the
cut-off voltage and record charge capacity. Store the battery at
various temperatures for 2h and discharge the battery with 0.33C to
the cut-off voltage. |
| -0℃ | ≥80% |
| 25℃ | ≥100% |
| 55℃ | ≥95% |
| 4.7 | Charge Retention ability | Residual capacity≥80% | Charge the battery to full capacity and store it for 28days, and
then discharge it with 0.33C to the cut-off voltage. |
| Recovery capacity≥90% |
Protective circuit specification
The batteries are supplied with a LiFePO4 Battery Management System
(BMS)that can monitor and optimized each single prismatic cell
during charge & discharge, to protect the battery pack overcharge,
over discharge, short circuit. Overall, the BMS helps to ensure
safe and accurate running.
| NO. | Items | Content | Specification |
| 5.1 | Over charge | Over-charge protection for each cell | 3.80±0.03V |
| Over-charge release for each cell | 3.60±0.05V |
| Over-charge release method | Under the release voltage |
| 5.2 | Over discharge | Over-discharge protection for each cell | 2.50±0.05V |
| Over-discharge release for each cell | 3.00±0.05V |
| Over-discharge release method | Charging recovery |
| 5.3 | Over current | Discharge over current protection | 550±50A |
| Protection delay time | 50~150ms |
| Over current release method | Release after cutoff the load. |
| 5.4 | Short | NO. | Ban electrode short circuit |
| 5.5 | Battery temperature | Charge over temperature | Protection @55±5℃ |
| Release @45±5℃ |
| Discharge over temperature | Protection @65±5℃ |
| Release @55±5℃ |
| Charge low temperature | Protection @0±5℃ |
| Release @10±5℃ |
| Discharge low temperature | Protection @-20±5℃ |
| Release @-10±5℃ |
| MOSFET over temperature | Protection @100±5℃ |
| Release @90±5℃ |
| 5.6 | LCD Screen: | Short press a switch, light and display screen: voltage temperature
residual capacity current, light up after waiting for screen to go
out, after 60 s into power saving state (buzzer open state, the
buzzer alarm detection background), short press it again to light
up the screen. |
| 5.7 | Buzz: | Buzzer open state: SOC 10% or less, buzzer alarm, long press switch
3 s, buzzer close and screen OFF buzzer hints |
| Buzzer is turned off, when the SOC 50% or less, need to manually by
3 s starting buzzer long (SOC testing and determine whether the
alarm). |
Buzzer is turned off, charging when the battery pack is SOC >
50%, the buzzer closed automatic reset, in an open position.
|
Features:
The battery uses imported original big brand ion batteries, with a
small internal resistance, big capacity, cycle times and more, no
memory effect, etc; internal circuit for multiple protection
design, can prevent over charge, over discharge, over current;
production process quality inspection and monitoring the use of
computers to ensure superior battery performance.
Applications:
Golf trolly of 12v 1200w motor , Wireless camera, surveillance
cameras, wireless infrared detector, car LCD TV, portable DVD,
personal treatment system, PDA personal data assistant, personal
communications systems, walkie-talkies, digital cameras,
camcorders, video cameras, Bluetooth devices, CD players, MD
players, MP3 players, smart cards, aviation model LED lights and
other fields can be used in 12V power.
How to choose a suitable battery pack?
- battery voltage is the same with the original.
- battery size same with the original. Or similar/smaller.
- battery plugs same with the original (check the plug diagram)
Match the above three conditions, in general, this battery can be
used.
The larger of MAH, the longer use time. Different voltage, battery
size, shape, can be same voltage, because the battery combination
of different ways, the shape is not the same. You can leave a
message about your old battery, please pay attention!!!
Quality Control
Capacity test, High current discharge test,Low temperature test,
Short circuit test, Over charging test,
Over discharging test, Cycle performance test, Crush test, Impact
test, Vibration test, High temperature test
