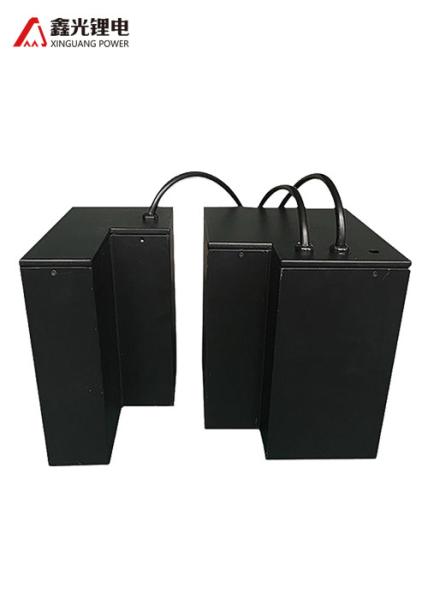

Item: 60v 120ah lithium battery pack
Size:220*240*520mm
Battery pack weight : About 25kg
Color:Black
Continious discharge current : 100A
Rated Voltage: 60V
Max Charge Voltage: 67.2V
Charge current: 10A
BMS (Battery Management System):
With built-in BMS for over-current, over-discharge, over-charge,
short-circuit, adverse-polarity connection, balancing functions
Specification
Battery Type | PVC Pack |
|---|
| Battery Chemistry | Lithium-Ion |
| Cell Type/Assembly Method | Cylindrical cells/welded |
| Voltage (V) | 60V |
| Capacity (Ah) | 120Ah |
| Energy Stored (Wh) | 7200 Watt-Hours |
| Weight | 47.40 lbs. (21.50 kg) |
| Dimension (L x W x H) | 405 mm x 250 mm x 160 mm |
| Cycle Life | 2000+ cycles |
| Normal Charge Current | 8.0 Amps |
| Nominal Continuous Discharge Current | 30.0 Amps |
| Maximum Continuous Discharge Current | 60.0 Amps |
| Maximum Peak Discharge Current | 120.0 Amps |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Operating Humidity | 60±20%R.H |
| Storage Humidity | 60±20%R.H |
| Automatic Battery Protection Module/System | Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing |
Features:
The battery uses imported original big brand ion batteries, with a
small internal resistance, big capacity, cycle times and more, no
memory effect, etc; internal circuit for multiple protection
design, can prevent over charge, over discharge, over current;
production process quality inspection and monitoring the use of
computers to ensure superior battery performance.
Products Parts
Advantages of battery:
We are a reliable and professional manufacturer of rechargeable
batteries. We have a research and development team.
1. Develop customized BMS for your project in house
2. Use high-quality battery cells , with strictly QC control
3. With silicone insulation , battery pack with 3 years warranty
4. All the battery pack with insurance code , do not worry about
the after sale service
Application
This product specification describes the main characteristics of
the lithium battery pack, and is not included in this specification
for situations beyond the use environment and conditions of the
lithium battery.
This product is specially used for electric vehicles,electric
scooters,electric boat ,solar energy , home electric tools ,
Military Equipments and so on
Packing list :
1 x 60V 120Ah Li-ion Battery pack
1 x High quality 67.2V 10A Charger
Packing and shipping
• Fedex/DHL/UPS/TNT for sample . Door to Door
• By Air or by Sea for Bulk goods , for FCL . Airport Port
receiving
• Customers specifying freight forwarders or negotiable shipping
methods
• Delivery Time: 7-15 days for samples , 25-35 days for bulk goods
time
Remark:
We have lithium, batteries, accept customized battery pack, we
can't update all items here. If you want any others, please take it
easy to contact with me and tell me your requirement (the capacity
/ voltage / size / discharge current ) , thanks.
Basic Information:
