    Electric Bus 72V 40ah LiFePO4 Li - Ion Battery Pack

    Ask Lasest Price
    Brand Name : Xinguang lithium battery
    Model Number : 72V 40ah
    Certification : CE,ROHS,UN38.3,MSDS
    Price : Negotiable
    Payment Terms : D/P, Western Union, L/C
    Supply Ability : 50,000kWh
    Delivery Time : 10-15 days for samples, 20-35 days for bulk order
    MOQ : 1 pcs
    • Product Details
    • Company Profile

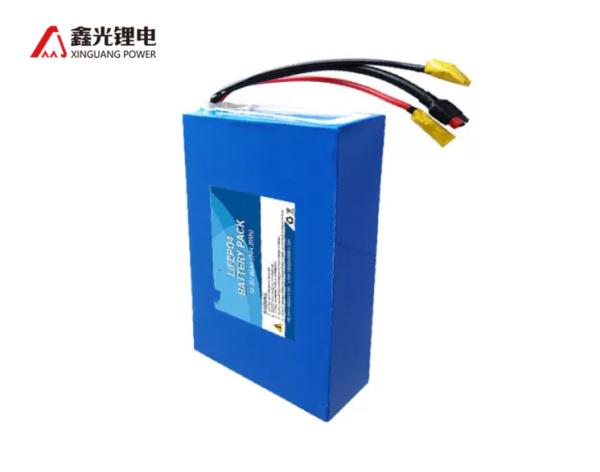

    Electric Bus 72V 40ah LiFePO4 Li - Ion Battery Pack

    72V 40ah LiFePO4 Battery Li-ion Battery Pack Electric Bus Battery Pack


    Feature:


    Uniqueness of Borui Single Battery Cell
    Uniqueness of Borui Battery Pack

    1
    Safety1Modular Design

    2
    Long Cycle Life2Pack Design with Light Weight

    3
    Low Internal Impedance3Series and Parallel Connection Technology

    4
    High Energy Density4Precise Temperature Detection

    5
    High Power Density5Experimental Date Analysis

    6
    Excellent Temperature Performance6Without Wiring Harness Structure

    Specification

    72V 40AH Li-ion LiFePo4 Battery Lithium Ion Battery Rechargeable Battery Power Pack for Electric Vehicle


    72V 40Ah lithium polymer battery pack
    MechanicalModePN85188236
    Cell & Connection ModeTernary/(NiCoMn)O2, 19S1P
    Dimension(D*W*H)253.5*191*169MM
    Weight15.8KG
    Electrical
    Characteristics
    Rated Capacity40Ah
    Min Capacity39Ah
    High Rate Discharge Capacity> 90% Rated Capacity
    Discharge Capacity @ -20ºC(-4ºF)> 70% Rated Capacity
    Norminal Voltage68.4V
    Open Voltage74-76V
    Load Voltage≥ 52.25V
    Energy2736Wh
    Internal Impedance(@ 1000Hz.)≤ 50mΩ
    Cycle Life>1000 Cycles @ 3C 100% DOD
    Months Self Discharge≤ 5% @ 25ºC(77ºF)
    Efficiency of Charge100% @ 1/3C
    Efficiency of Disharge95% @1C
    Standard
    Charge
    Max Charge Voltage79.8V
    Charge Cut-off Voltage79.8V
    Charge Current1/3C, 13.3A
    Max Charge Current40A
    Standard
    Discharge
    Standard Current40A
    Max Discharge Current3C, 120A
    Discharge Cut-off Voltage52.25V
    EnvironmentalCharge Temperature0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity
    Discharge Temperature-20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
    Storage Temperature≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF)
    @ 65±20%Relative Humidity
    ≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20


    Safety Performance:

    Item

    Test name

    Result

    1

    Over charge

    No fire,no explosion

    2

    Over discharge

    No fire,no explosion

    3

    Short Circuit

    No fire,no explosion

    4

    Drop

    No fire,no explosion,no leakage

    5

    Hot oven

    No fire,no explosion

    6

    Crush

    No fire,no explosion
    7Needle puncture
    No fire,no explosion


    Application:

    cylindrical lithium battery pack lifepo4 battery

    1. Telecommunications: cellular phone, interphone, cordless phone

    2. Portable equipment: digital camera, portable DVD, portable television,

    3. Portable Devices: GPS, PDA, PMP, PSP, portable medical device, insrument and apparatus etc.

    4. Illuminate Devices: miner lamp, searchlight, lighting devies, emergency light.

    5. Others: toys, rc models, power tools, Widely applied in POS system, Solar supply system, electric tools,household appliances and emergent device area.electric bikes, Laptop, camcorder, Military equipment: IR telescope, Medical devices.




    After-sale Service

    All of Borui battery cells in a pack are with very high consistency.In a pack, each cell has its own sole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. Borui has a strong system working for this.


    Our advantages


    1. Prompt delivery of the Agreement. ((Refund in the case of late delivery)

    2. Quality Assurance CONTRACT

    3. Trade Secrets CONTRACT

    4. With short-circuit production function, safe and reliable.

    5. Good performance, light weight

    6. Excellent cycle life


    Service:

    1. Reply your inquiry in 12 working hours.

    2. Experienced staffs answer all your questions in fluent English.

    3. Customized design is available. 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

    5. Special discount and protection of sales are provided to our distributor.

    6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 15years, competitive with good quantity.

    7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

    8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

    If you are in need of our products, you may let us know and we will offer you good products with great quality and service.


    FAQ:
    1. How would the goods be shipped?
    We ship via UPS,DHL ,FEDEX and sea transportation normally.

    2. Can you print my picture or logo on the battery cover?
    Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.

    3. What's your warranty for battery?
    Our battery the warranty time is 5 years .

    4.Can I force-discharge lithium batteries?
    When batteries are force-discharged with an external power source, the voltage drops to under 0 volts (which is called voltage reversal ) and internal gas is generated. This can lead to swelling, heat generation, leakage, rupture or fire.

    5.Can I use Lithium batteries mixing with other battery types?
    If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc., may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

    6.Where should lithium batteries be stored?
    Lithium batteries should be stored in a cool, dry place that is not exposed to direct sunlight and has minimal temperature variation. Storage in areas subject to high temperature or humidity may cause deterioration in battery quality and durability. To avoid short circuiting batteries during storage, be sure that the positive and negative terminals do not come into contact with each other.

    7.What is a short circuit?
    If the positive and negative terminals of a battery come into contact with each other or with a conductive metallic object, this can cause a short circuit, which generates heat. If cells or batteries are stacked on top of each other or mixed, the resulting short circuit can lead to heat generation, leakage, rupture, and possibly fire.
