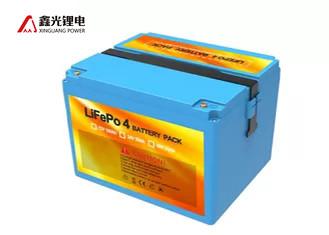

12V 100Ah LiFePO4 Battery Pack For RVs camper trailer battery
Description
LiFePO4 rechargeable battery pack 12V 100Ah is customized for Rv Camper. We provide customized services for all products, such as golf
carts, robots, AGVs, golf carts, electric vehicles, motorcycles,
forklifts, etc. 12V 100Ah LiFePO4 vehicle battery specifications (@
battery initial temperature 25±5 ℃)
| Product name | 12V Lithium LiFePO4 Battery for RV | | Nominal Voltage | 12V | | Nominal Capacity | 100Ah | | Standard Charge Current | 20A | | Max. Charge Current | 100A | | Working voltage | 2.5- 3. 65v | | Charge Cut-off Voltage | 3.65V | | Discharge Cut-off Voltage | 2.5V | | Standard charging current | 100Ah | | Resistance | ≤ 0.3 Mω | | Weight | 11kg | | Dimension (L x W x H) | 133 x 173 x 192 mm | | Operating Temperature | Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C | Cycle Life | ≥2000 times @100% DOD | | Standard | IEC |
|
|
Features
- Good performance at high temperature, working at 65°C.The battery
structure is safe and good.
- High efficiency output: standard discharge current is 0.3c-0.8c,
and instantaneous pulse discharge current is 10C, lasting for 10
seconds.
- Good safety performance: when the pressure inside the battery is
too high, the one-way safety valve will release gas and heat to
ensure good battery performance.When the internal pressure reaches
a certain level, the valve opens immediately, protecting the
battery from combustion and explosion.
- Manufacturing and use without contamination.
- Long cycle life, the discharge capacity of single cell after 2000
cycles (80% of DOD) is still more than 80%.
- Good safety performance: when the pressure inside the battery is
too high, the one-way safety valve will release gas and heat to
ensure good battery performance.When the internal pressure reaches
a certain level, the valve opens immediately, protecting the
battery from combustion and explosion.
- Good performance at low temperature.The discharge capacity
decreases to more than 78% at 0°C and to more than 70% at -20°C.
- It can be charged quickly.It can be charged up to 80% in 20 minutes
and fully charged for 2-3 hours
- Low cost.
Advantages of battery:
We are a reliable and professional manufacturer of rechargeable
batteries. We have a research and development team.
1. Develop customized BMS for your project in house
2. Use high-quality battery cells , with strictly QC control
3. With silicone insulation , battery pack with 3 years warranty
4. All the battery pack with insurance code , do not worry about the
after sale service
Built-in BMS
| No. | Item | Test Item | Creterion | | 1 | Voltage | Charging Voltage | DC:14.4V CC/CV | | Balance voltage for single cell | 3.50±0.025V | | 2 | Current | Balance voltage for single cell | 35±5mA | | Current consumption | ≤50μA | | Charging current | 100A | | Rated continuous discharging current | 250A (Peak 500A) | | 3 | Over charge Protection | Over charge detection voltage for single cell | 3.65V±0.025V | | Over charge detection delay time | 0.7S—1.3S | | Over charge release voltage for single cell | 3.550±0.05V | | 4 | Over discharge Protection | Over discharge detection voltage for single cell | 2.50V±0.07V | | Over discharge detection delay time | 1.6±0.5S | | Over discharge release voltage for single cell | 3.00±0.75V | | 5 | Over current Protection | Over current detection current | 3 00±50A | | Over current detection delay time | 1.6±0.5S | | Release condition | Cut load | | 6 | Short circuit Protection | Detection condition | Exterior short circuit | | Detection delay time | 230uS—500uS | | Release condition | Cut load | | 7 | Auto heating function | Built-in heating Pad 20W | Optional | | Starting /Stoping temperature | Adjustable | | 8 | Battery Communication | RS485/Bluetooth | Optional | | 9 | Resistance | Protection circuitry (MOSFET) | ≤60mΩ | | 10 | Temperature | Operating Temperature Range | -40~+85℃ | | Storage Temperature Range | -40~+85℃ |
|
|---|
Note BMS is customizable. More advanced functions available, such
as bluetooth, RS485, CAN, Automaticaly Heating functions,
High temperature shut off, Low temperature shut off, BMS protocol
available etc. Contact us for more details!
| Voltage | Capacity/AH | Weight | With BMS | Bluetooth/RS485 Auto-heating/Canbus | Warranty | Life Cycles |
|
| 12V | 10 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 15 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 20 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 25 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 30 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 40 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 50 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 60 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 80 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 86 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 100 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 120 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 140 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 150 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 160 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 176 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 200 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 240 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 250 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 271 | 29KG | Yes | Optional | 3 years | >6000 times |
| 12V | 300 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 400 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 600 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 700 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 800 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 900 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 5000 | Optional | Yes | Optional | 3 years | >6000 times |
| Note Capacity/Size /Weight Can be Customized OEM Available, MOQ
1pcs |
Application
This product specification describes the main characteristics of
the lithium battery pack, and is not included in this specification
for situations beyond the use environment and conditions of the
lithium battery.
This product is specially used for electric vehicles,electric
scooters,electric boat ,solar energy , home electric tools ,
Military Equipments and so on
