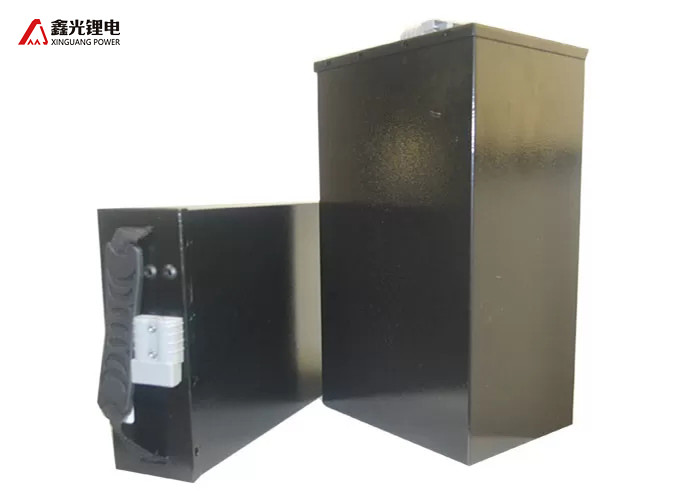

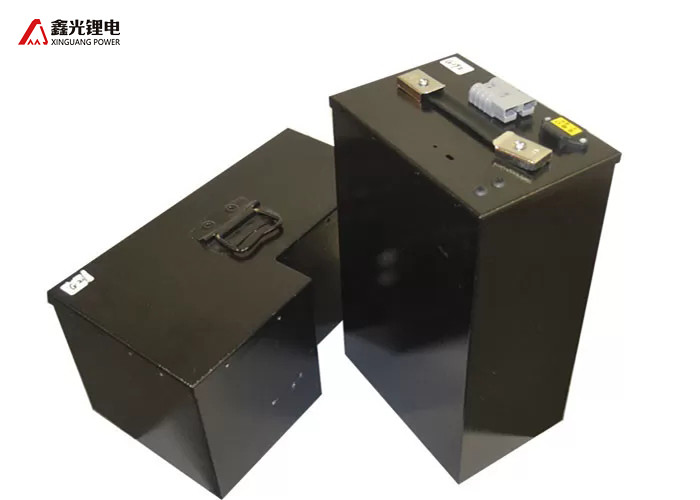

High Power 72v 60A Lithium Battery pack For Electric Motorcycle
Description
VICT produce high quality Li NCM batteries for electric
motorcycles, electric vehicle, solar energy storage, lawn mower,
golf cart and various application field. The battery voltage is
from 12v to 120v, the capacity is from 20ah to 2000ah.
| Item | Specification | Notes | | Array Mode | 8P20S | | | Nominal Capacity | 80Ah at 23±2℃ | Standard charge and discharge | | Nominal Voltage | 72V | | | Energy | 5760Wh | at 23±2℃ | | AC Impedance | ≤60mΩ | At 1kHz with 100% SOC | | Charging Voltage | 84±0.15V | | | Discharge End Voltage | 60±0.2V | | | Standard Charging Method | CC and CV is 16A | Tempeature 23±2℃,charge end with 5h or current drops to 0.02C | | Max.Charge Current | 40A | Temperature 23±2℃ | | Standard Discharging Method | 80A | Constant Current Discharge with 1C | | Max.Discharge Current | 90A | Discharge Time: Less than 60 s (at 23±2℃) | | Operating Temperature | Charging Operating | 0℃～45℃ | | Discharging Operating | -20℃～60℃ | | Storage Characteristic | 1 month | Temperature :-20℃～60℃ | | | 3 months | Temperature :-20℃～45℃ | | | One year | Temperature :-20℃～20℃ | | Relative Humidity for Storage | 5%～95% | | | Charge Retention and Capacity Recovery Characteristic | Charge Retention Rate≥55% and Capacity Recovery Rate≥ 80%. | Storage the battery for 20d at 60℃ after fullycharge with standard
charge method |
|
|
Features
• More than 2000 Cycles @80% DOD ( depth of discharge)
• Battery modules available for parallel and series for higher
voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for your marine boat or RV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
• We offer 3 years regular warranty and it can be extended up to 10
years.
Advantages of battery:
We are a reliable and professional manufacturer of rechargeable
batteries. We have a research and development team.
1. Develop customized BMS for your project in house
2. Use high-quality battery cells , with strictly QC control
3. With silicone insulation , battery pack with 3 years warranty
4. All the battery pack with insurance code , do not worry about the
after sale service
Built-in BMS
| Item | Specification | Notes | | Model | LI20SN5-6-200A | | | Charge Method | CC Plus CV | | | Max. Charge Current | 40A | Typical 16A | | Continuous Discharge Current | 80A | | | Max Discharge Current | 90A | Time 60s | | Overcharge Protection Threshold | 4.2±0.03V | | | Overcharge Protection Release Conditions | 4.1±0.05V | | | Over Discharge Protection Voltage Threshold | 2.8±0.08V | Delay time 1s | | Over Discharge Protection Release Conditions | Charging or release load | | | Over Discharge Current Protection | 200±10A | Time 9ms | | Over Discharge Current Protection Release Conditions | Charging or release load | | | Over Temperature Protection Threshold | 75℃±8℃ | During Discharge Process | | Over Temperature Protection Release Condition | 58℃±8℃ | During Discharge Process | | Short Circuit Current Protection Function | Yes | Exterior short circuit | | PCM Consumption Current | 150μA (Max.) | Normal mode | | BMS B-, P- On-Resistance | ≤20mΩ |
|
|
|
|---|
Note BMS is customizable. More advanced functions available, such
as bluetooth, RS485, CAN, Automaticaly Heating functions,
High temperature shut off, Low temperature shut off, BMS protocol
available etc. Contact us for more details!
| Voltage | Capacity/AH | Weight | With BMS | Bluetooth/RS485 Auto-heating/Canbus | Warranty | Life Cycles |
|
| 12V | 10 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 15 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 20 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 25 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 30 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 40 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 50 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 60 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 80 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 86 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 100 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 120 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 140 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 150 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 160 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 176 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 200 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 240 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 250 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 271 | 29KG | Yes | Optional | 3 years | >6000 times |
| 12V | 300 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 400 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 600 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 700 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 800 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 900 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 5000 | Optional | Yes | Optional | 3 years | >6000 times |
| Note Capacity/Size /Weight Can be Customized OEM Available, MOQ
1pcs |
Products Parts
Application
This product specification describes the main characteristics of
the lithium battery pack, and is not included in this specification
for situations beyond the use environment and conditions of the
lithium battery.
This product is specially used for electric vehicles,electric
scooters,electric boat ,solar energy , home electric tools ,
Military Equipments and so on
About us:
Certification:
Packing and shipping
• Fedex/DHL/UPS/TNT for sample . Door to Door
• By Air or by Sea for Bulk goods , for FCL . Airport Port
receiving
• Customers specifying freight forwarders or negotiable shipping
methods
• Delivery Time: 7-15 days for samples , 25-35 days for bulk goods
time
Why Choose us?
Reliable quality -- We have 10 years of battery industry experience. Automated
production line and precise equipment. In strict accordance with
international standards
for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We
have a professional R&D team, we can provide professional
customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer
the best solution to our customers.
Quick delivery
Fast delivery is key factor for clients to compete in the market.
We attach much importance to quick delivery as much
as we do in our LiFepo4 lithium battery quality. We will keep our
clients updated with tracking number all the time and latest
tracking info until the order of LiFePO4 lithium Battery arrives at
our clients safely.
24 hours customer service, waiting for your inquiry!
