Brand Name : | Xinguanglithium battery |
Model Number : | 42V 10A |
Certification : | CE,MSDS,ROHS,UN38.3 |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50000+ |
Delivery Time : | 25 days after receive the deposit payment |
Description
high quality li-ion battery packs for ebikes and escooters. Here
are pouch cell or cylindrical
cells for the package choices. Packs made with pouch cells have
high reliable simplified package in structure
and great safety. Packs made with cylindrical cells have high
energy density or high power output, depends on
which model of cylindrical cells used. For cylindrical cells we
only use Panasonic, LG or Samsung to insure
the cell quality. VICT's unique manufacturing process make sure
cells have amazing consistency in battery
pack, with high precision quality control and auto matching system,
we deliver excellent products to support
our customer.
Specifications
Battery type | Li-ion (Li-NCM) battery |
Volt and Capacity | 48V 10Ah |
Battery size (L*W*H) | 106*76*390 mm |
Battery weight | 3.7 ± 0.1 kg |
Charging current | 2 - 5 A |
Charging time | 3 - 6 hours, depends on chargers |
Suggested discharge current | ≤ 10 A |
Max discharge current | ≤ 15 A @ continuous, 23 ℃ |
≤ 30 A @ 10 seconds, 23 ℃ | |
Cycle life | ≥ 1,000 times @ 70% DOD |
Capacity keep at 0℃ | ≥ 90% available capacity |
Self discharge rate | ≤ 5%, monthly |
Temperature condition | Charge: 0 ~ 40 ℃ |
Discha e: -20 ~ 40 ℃ |
Charge and Discharge Curve of Battery Cell
Feature
Advantages of battery:
Li-NCM Cell Advantage

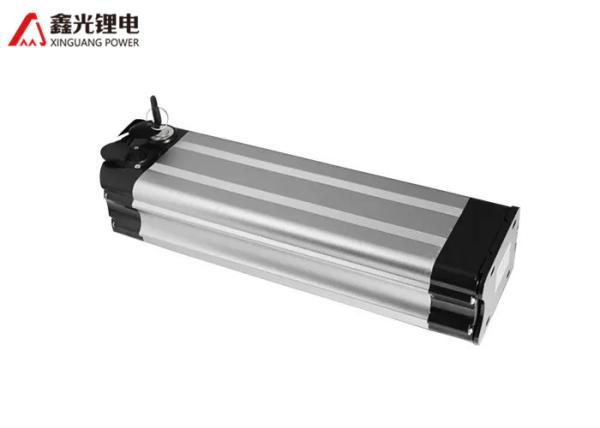

This battery pack has a slim shape which main body is an anodised
aluminum tube. We can customize the
length of case accordingly, if customer specified the voltage and
Capacity for the customize, like to offer
48V12Ah, 36V12Ah, 36V10Ah types etc. Please contact us for details
if needed.
We accept sample orders from customer for detail parameters
confirm, then make quantity volume orders in
precision production. Battery packs can be customized to difference
sizes and shapes, the voltage, capacity,
max discharge and charge current can be made exactly suit to
customer requirements.
Voltage | Capacity/AH | Weight | With BMS | Bluetooth/RS485 Auto-heating/Canbus | Warranty | Life Cycles |
12V | 10 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 15 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 20 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 25 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 30 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 40 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 50 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 60 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 80 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 86 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 100 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 120 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 140 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 150 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 160 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 176 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 200 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 240 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 250 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 271 | 29KG | Yes | Optional | 3 years | >6000 times |
12V | 300 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 400 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 500 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 600 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 700 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 800 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 900 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 1000 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 1500 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 2000 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 2500 | Optional | Yes | Optional | 3 years | >6000 times |
12V | 5000 | Optional | Yes | Optional | 3 years | >6000 times |
Note Capacity/Size /Weight Can be Customized OEM Available, MOQ 1pcs |
Products Parts
Application
This product specification describes the main characteristics of the lithium battery pack, and is not included in this specification for situations beyond the use environment and conditions of the lithium battery.
This product is specially used for electric vehicles,electric scooters,electric boat ,solar energy , home electric tools , Military Equipments and so on
Certification:
Packing and shipping
Fast delivery is key factor for clients to compete in the market. We attach much importance to quick delivery as much
as we do in our LiFepo4 lithium battery quality. We will keep our clients updated with tracking number all the time and latest tracking info until the order of LiFePO4 lithium Battery arrives at our clients safely.
Why Choose us?
Reliable quality -- We have 10 years of battery industry experience. Automated production line and precise equipment. In strict accordance with international standards
for production inspection, to ensure product quality and safety.
Positive service -- We give response for all inquiries/questions in 24 hours. We
have a professional R&D team, we can provide professional
customized and one-stop services.
Taking responsibility -- PAC members to proactively take responsibility, we always offer
the best solution to our customers.
24 hours customer service, waiting for your inquiry!
![]() |
