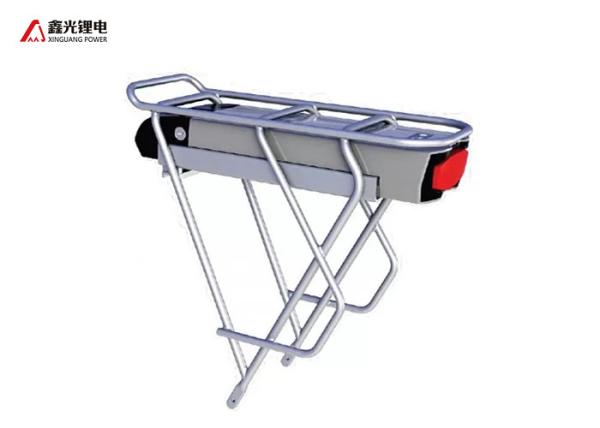

42V 12Ah e bike lithium battery pack
Description
Packs made with pouch cells have high reliable simplified package
in structure and great safety. Packs made with
cylindrical cells have high energy density or high power output,
depends onwhich model of cylindrical cells used.
For cylindrical cells we only use Panasonic, LG or Samsung to
insure the cell quality. VICT's unique manufacturing
process make sure cells have amazing consistency in battery pack,
with high precision quality control and auto
matching system, we deliver excellent batteries to support our
customer.
Specifications
| Battery type | Li-ion (Li-NCM) battery | | Volt and Capacity | 48V 12Ah | | Battery size (L*W*H) | 148*60*295 mm | | Battery weight | 3.8 ± 0.1 kg | | Charging current | 2 - 5 A | | Charging time | 3 - 6 hours, depends on chargers | | Suggested discharge current | ≤ 12 A | | Max discharge current | ≤15 A @ continuous, 23 ℃ | | ≤30 A @ 10 seconds, 23 ℃ | | Cycle life | ≥1,000 times @ 70% DOD | | Capacity keep at 0℃ | ≥90% available capacity | | Self discharge rate | ≤5%, monthly | | Temperature condition | Charge: 0 ~ 40 ℃ | | Discha e: -20 ~ 40 ℃ |
|
|
|
|
|
Charge and Discharge Curve of Battery Cell
Features
• More than 2000 Cycles @80% DOD ( depth of discharge)
• Battery modules available for parallel and series for higher
voltage and capacity
• BMS Passive cell balance funciton
• IP66, IP67, water proof, dust proof, Temperature monitoring
• Customization for Size and Discharge and charge rate
• Free of Maintenance, contains no poisonous material
• No leakage, no hazardous chemistry
• Quick delivery
• Lighter in weight, smaller in size to save space.
• Powerfull to increase robust operation for your marine boat or RV
• Fast charging and high power discharge rate available
• No need to add water nor worry about maintenance.
• We offer 3 years regular warranty and it can be extended up to 10
years.
Advantages of battery:
Li-NCM Cell Advantage
- High power and energy densities up to 180wh/kg
- Long life 2000 cycles
- Thermal stability
- Good performance of working on very low temperature
- Low self discharge ≤5%, monthly
- High Discharge Current up to 3C continuous with negligible loss in
efficiency and cell life
- Lighter and smaller than lead acid battery
| Voltage | Capacity/AH | Weight | With BMS | Bluetooth/RS485 Auto-heating/Canbus | Warranty | Life Cycles |
|
| 12V | 10 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 15 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 20 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 25 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 30 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 40 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 50 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 60 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 80 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 86 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 100 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 120 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 140 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 150 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 160 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 176 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 200 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 240 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 250 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 271 | 29KG | Yes | Optional | 3 years | >6000 times |
| 12V | 300 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 400 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 600 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 700 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 800 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 900 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 1500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2000 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 2500 | Optional | Yes | Optional | 3 years | >6000 times |
| 12V | 5000 | Optional | Yes | Optional | 3 years | >6000 times |
| Note Capacity/Size /Weight Can be Customized OEM Available, MOQ
1pcs |
Products Parts
Application
This product specification describes the main characteristics of
the lithium battery pack, and is not included in this specification
for situations beyond the use environment and conditions of the
lithium battery.
This product is specially used for electric vehicles,electric
scooters,electric boat ,solar energy , home electric tools ,
Military Equipments and so on
